Product Description
Features

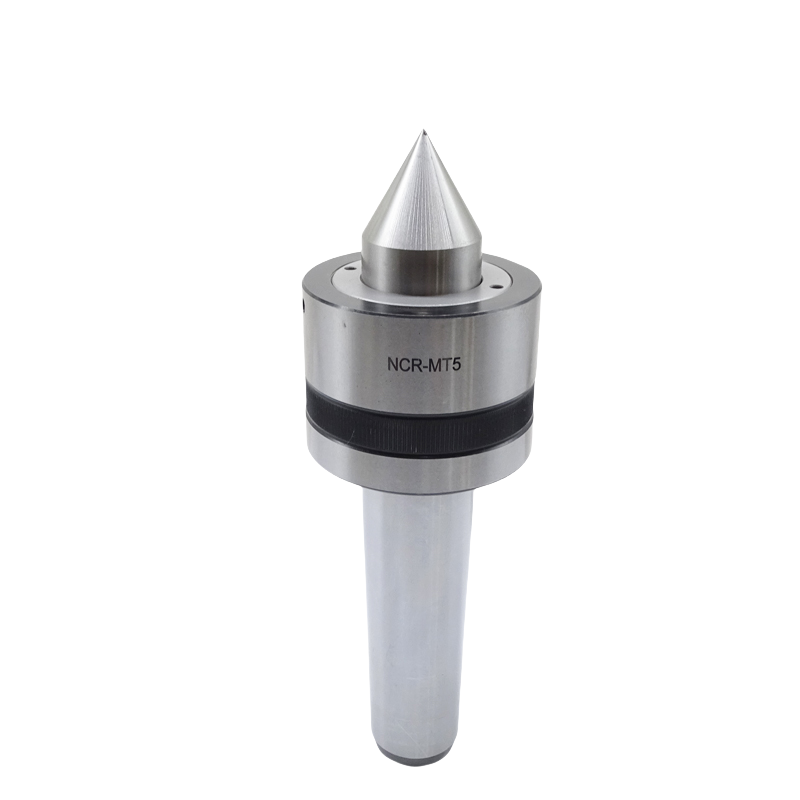

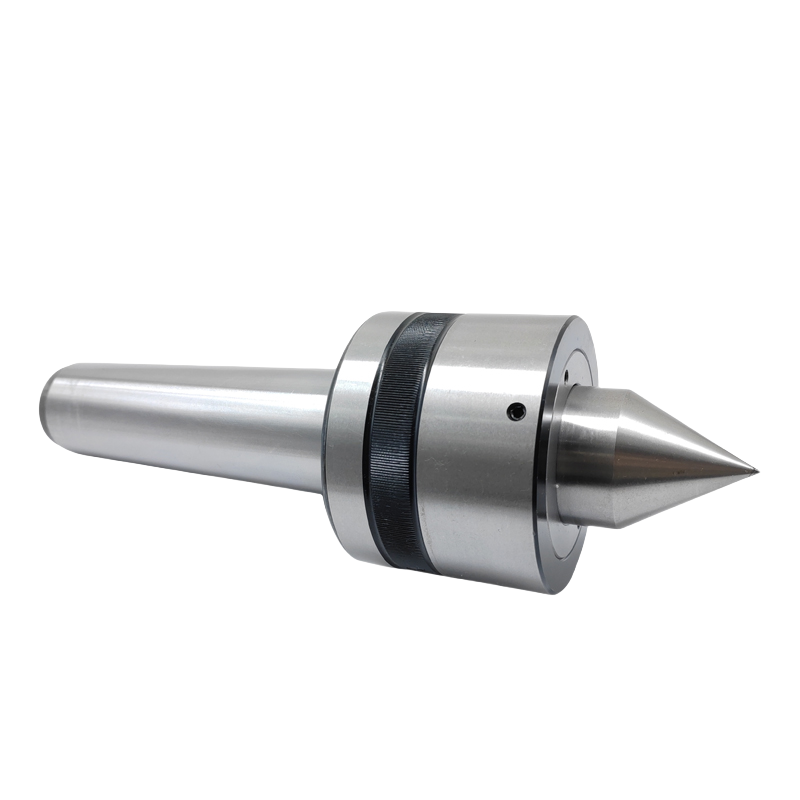

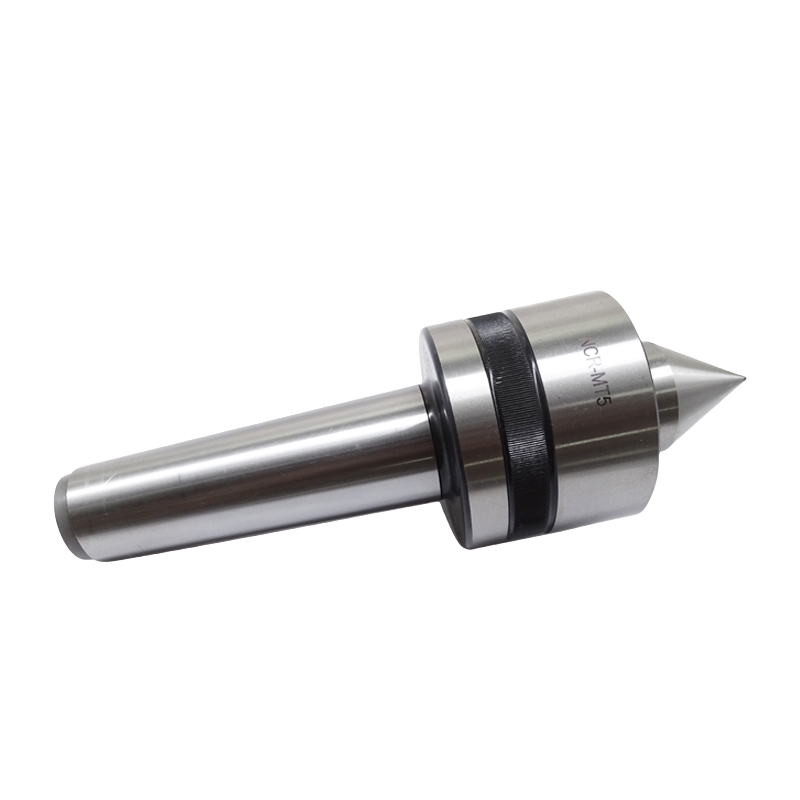

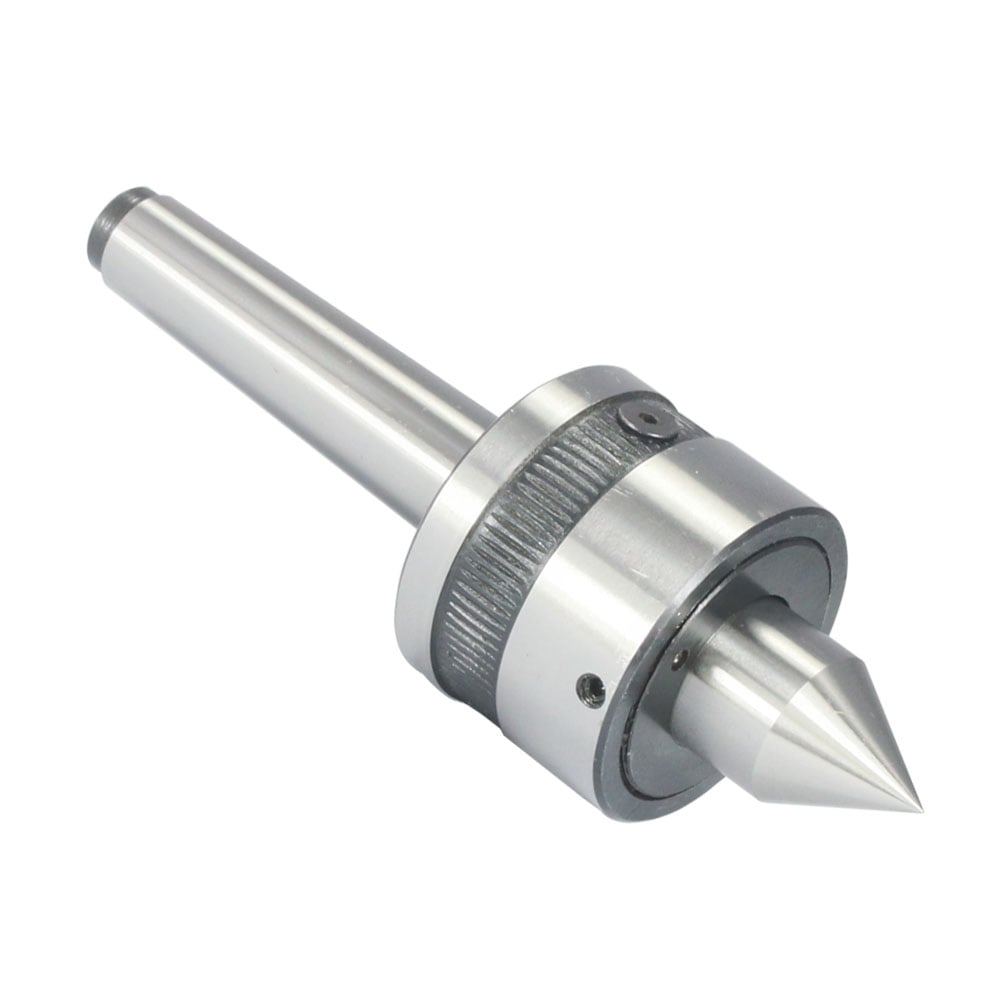

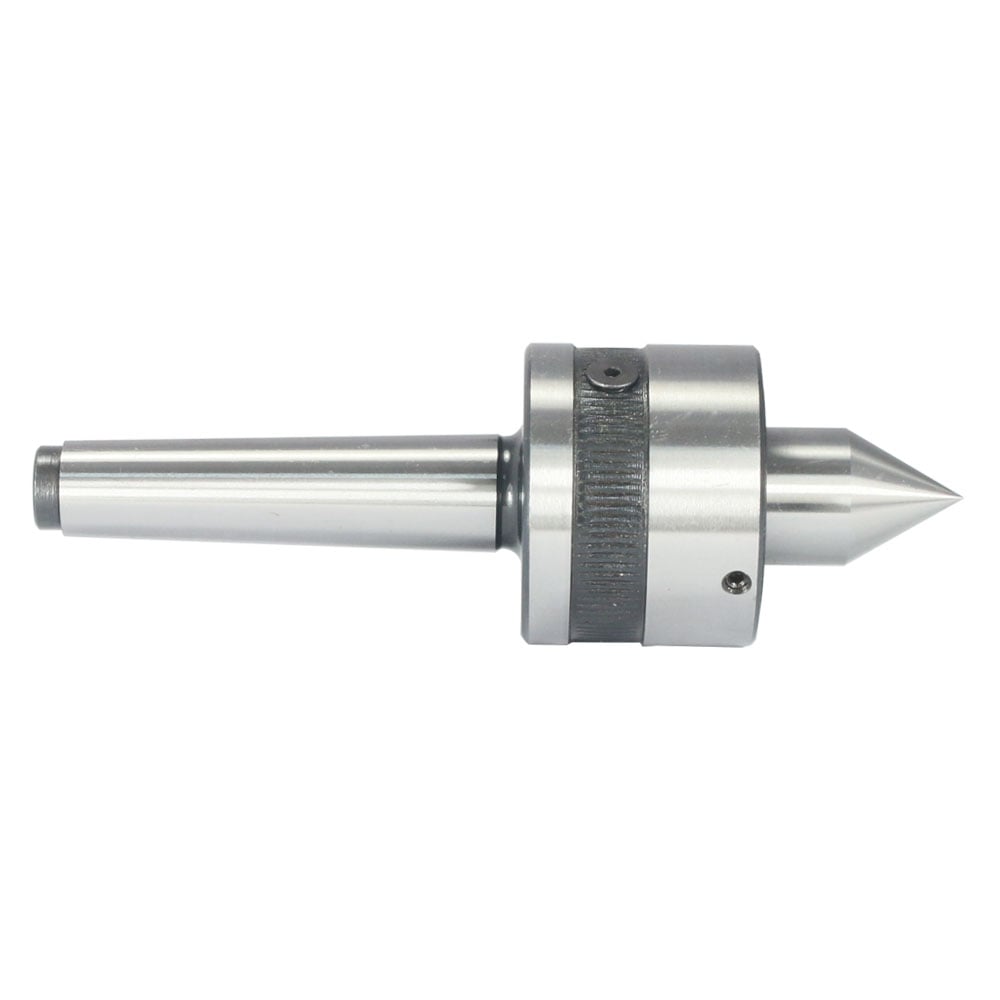

NCR Live Center (MT2.MT3.MT4.MT5.MT6)

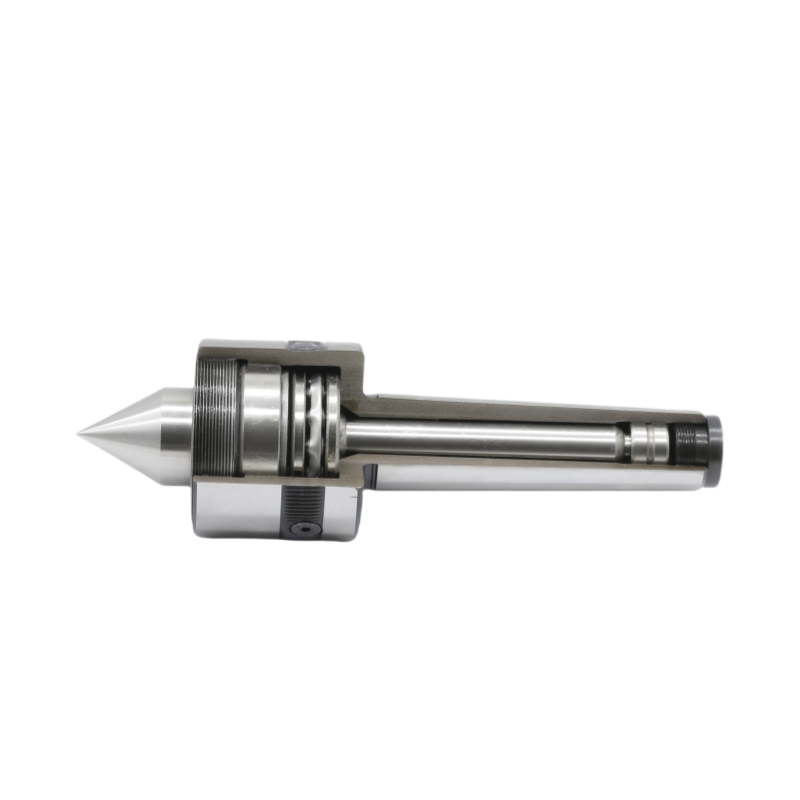

1.The live center has a combination of tapered roller bearing ,thrust ball bearing and needle bearing （NACHI/NSK）
2. Suitable for heavy-duty processing.
3. Point extends into body and supported by needle bearing for increased rigidity and vibration dampening.
4. Rotating point is made of high quality alloy steel,heated to HRC 60±2.
5. Oil filler is avaliable in the head part,able to refill oil and maintain the internal bearing for extend the service life .
Product parameters table

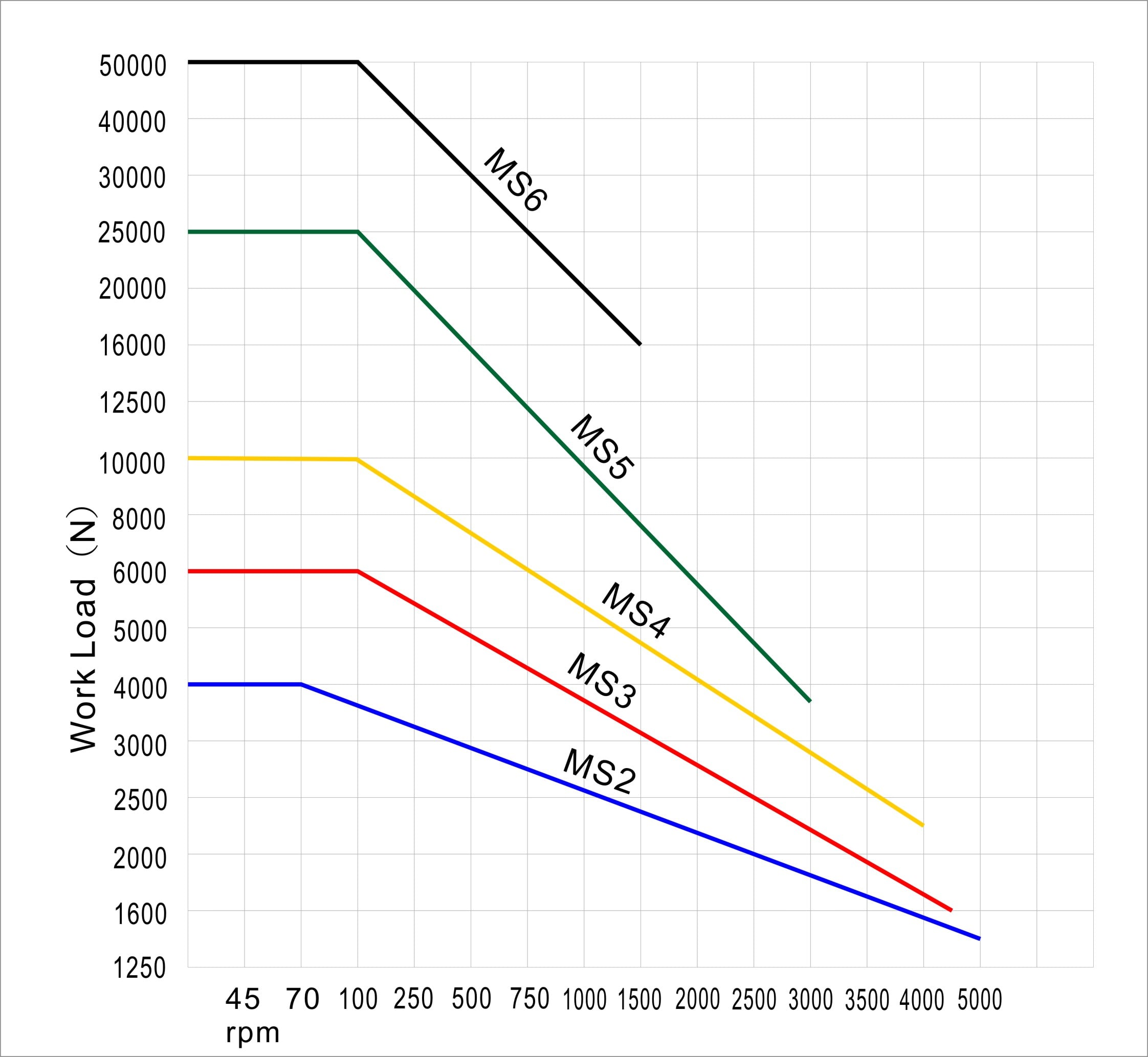

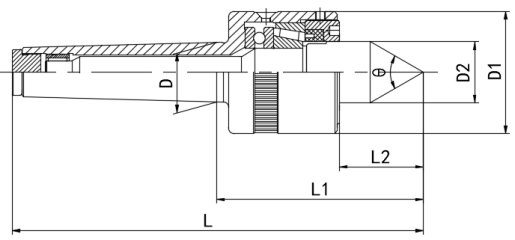

| Model | D | D1 | D2 | L1 | L2 | L | Max loading | Limit speed | Runout | θ | Weight |
| mm | mm | mm | mm | mm | mm | kg | RPM | mm | |||
| NCR-MT2 | 17.78 | 50 | 22 | 75 | 30 | 143 | 400 | 5000 | 0.005 | 60° | 0.85 |
| NCR-MT3 | 23.825 | 54 | 26 | 89 | 37 | 175 | 600 | 4500 | 0.005 | 60° | 1.2 |
| NCR-MT4 | 31.267 | 64 | 32 | 108.5 | 44 | 215.5 | 1000 | 4000 | 0.005 | 60° | 2.2 |
| NCR-MT5 | 44.399 | 84 | 42 | 122 | 50 | 257 | 2500 | 3000 | 0.005 | 60° | 4.7 |
| NCR-MT6 | 63.348 | 120 | 63 | 176 | 75 | 366 | 5000 | 1500 | 0.005 | 60° | 14.2 |
