Product parameters table
| Model | L | D | L1 | d | D1 | Max loading | Limit Rotational speed | Runout |
| mm | mm | mm | mm | mm | kg | rpm | mm | |
| M11/102(B) | 139 | 45 | 34 | 20 | 17.78 | 140 | 7000 | 0.005 |
| MT2 | ||||||||
| M11/106(B) | 176.5 | 60 | 47 | 25 | 23.825 | 400 | 5000 | 0.005 |
| MT3 | ||||||||
| M11/108(B) | 217 | 70 | 53 | 32 | 31.267 | 500 | 3800 | 0.005 |
| MT4 | ||||||||
| M11/110(B) | 273 | 90 | 65 | 40 | 44.399 | 1200 | 3000 | 0.005 |
| MT5 |
NCR HIGH PRECISION LIVE CETER

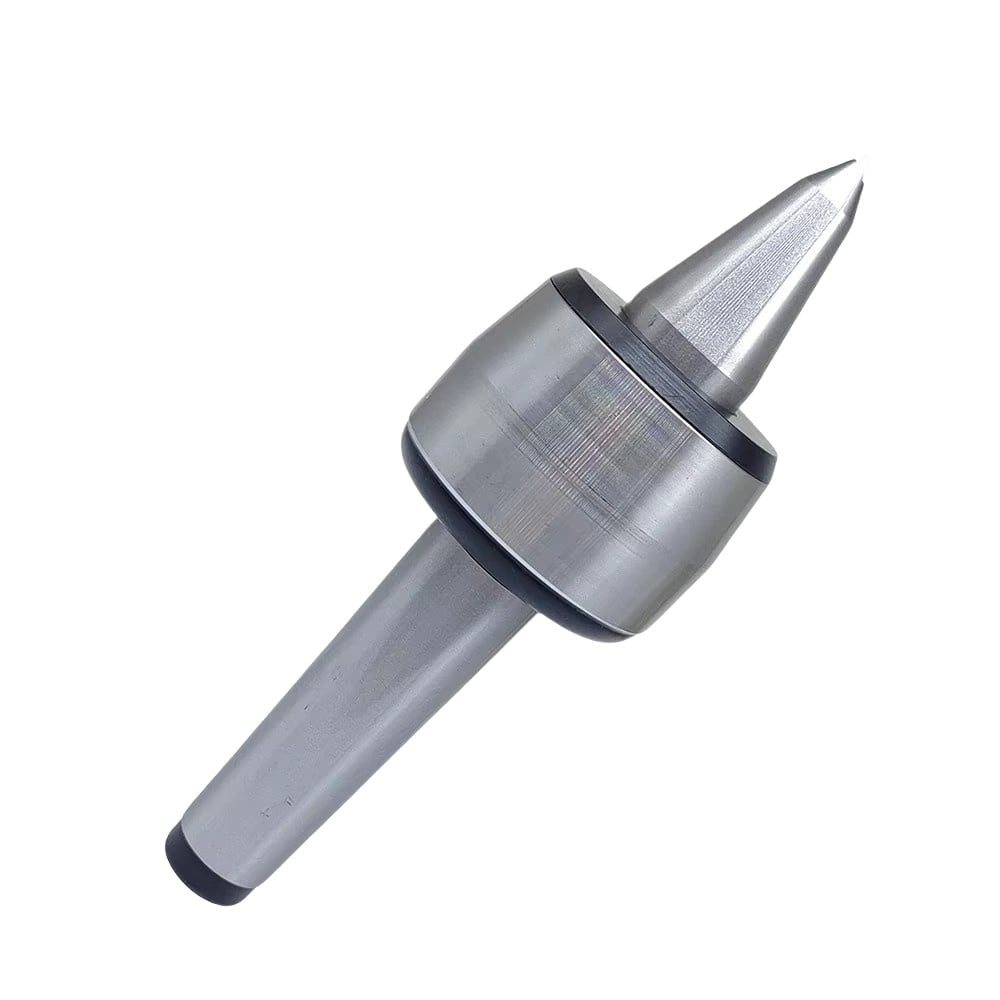

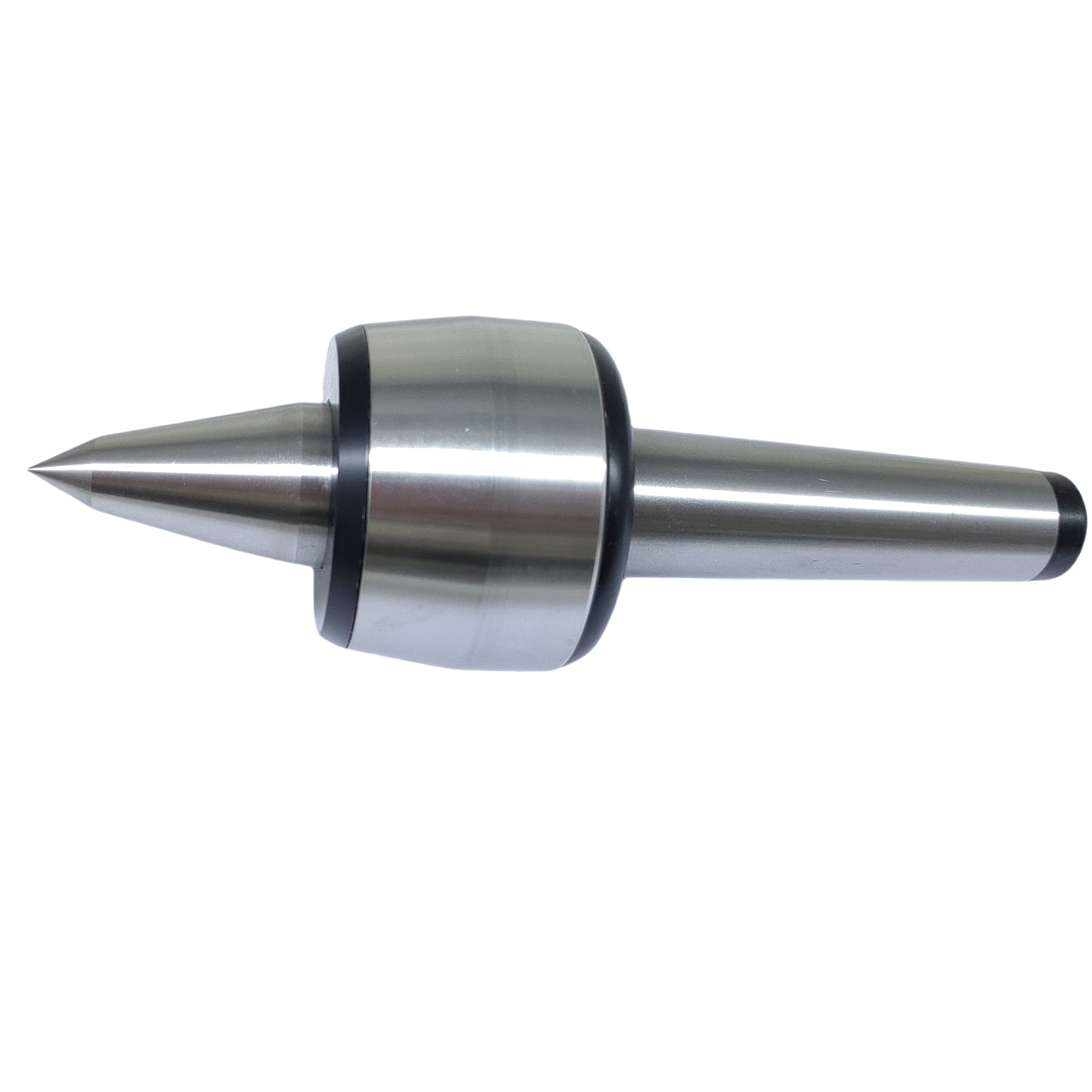

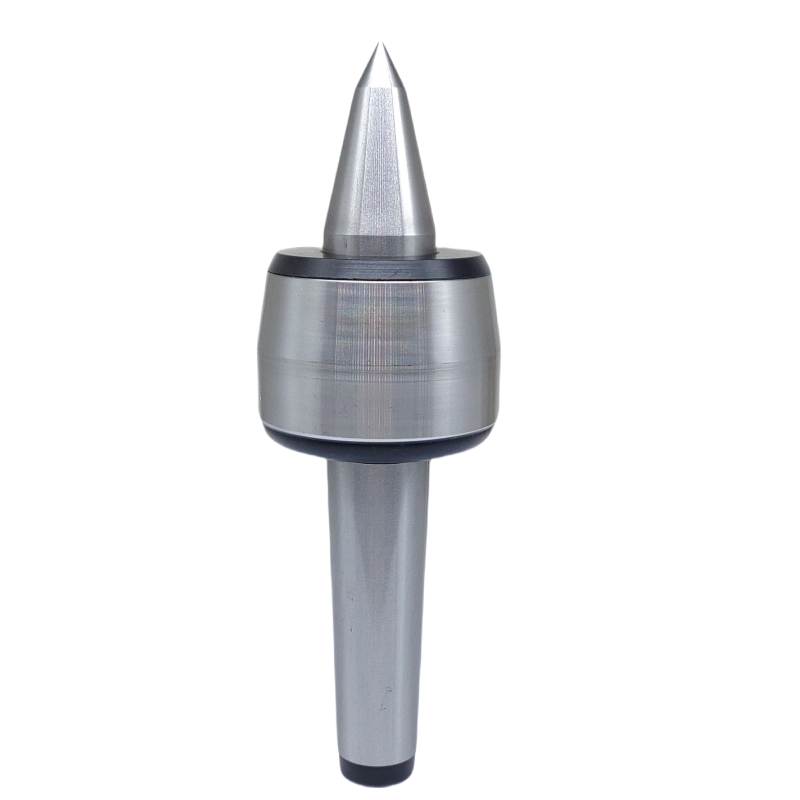

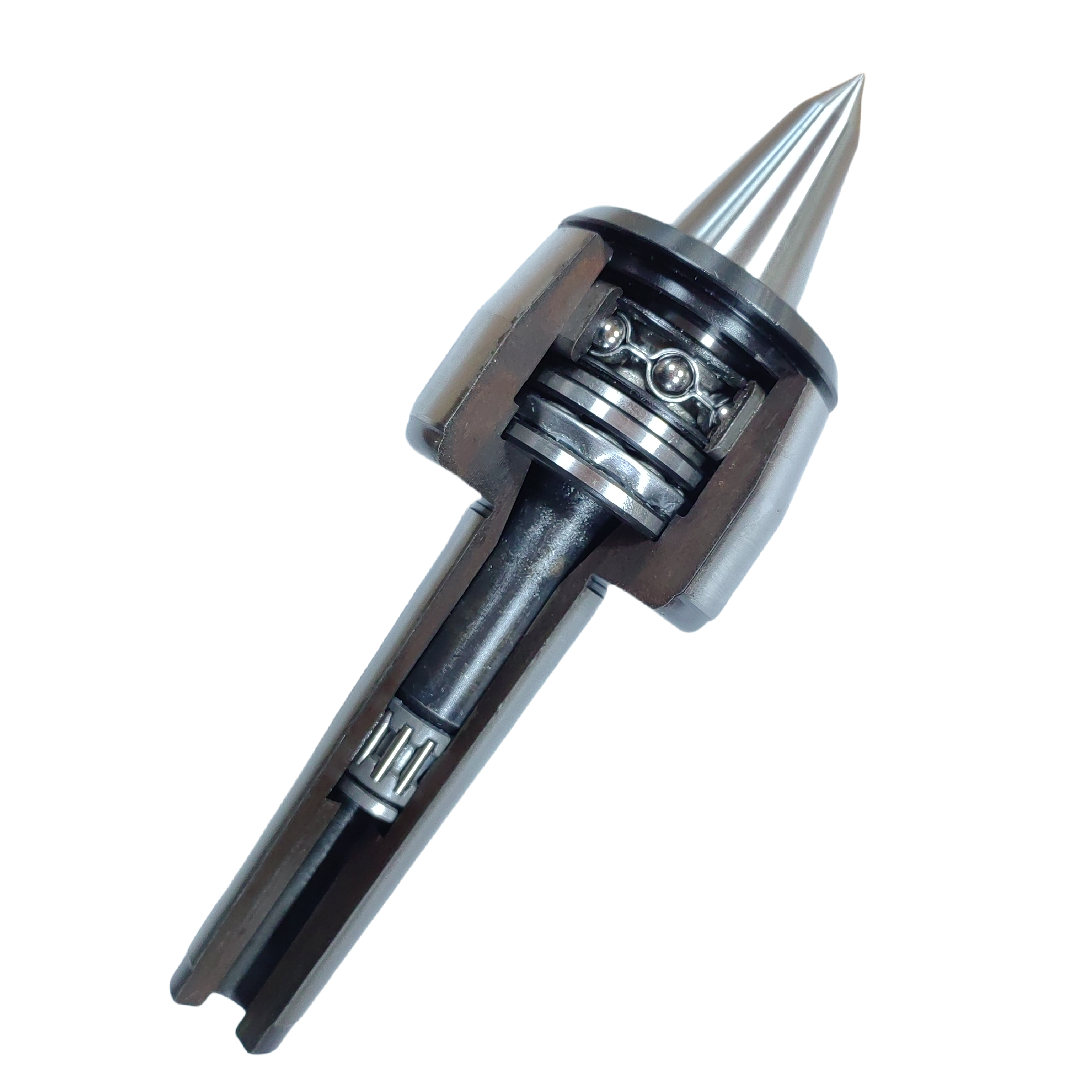

M11 SERIES PRECISION LIVE CENTER
Digital Micrometer
Milling chuck
