Introduction

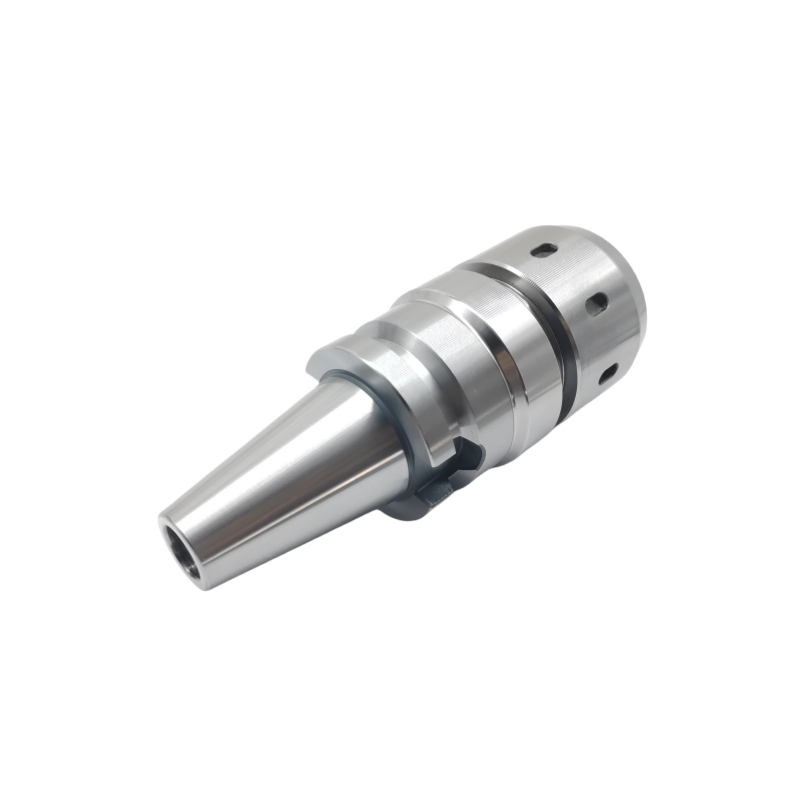

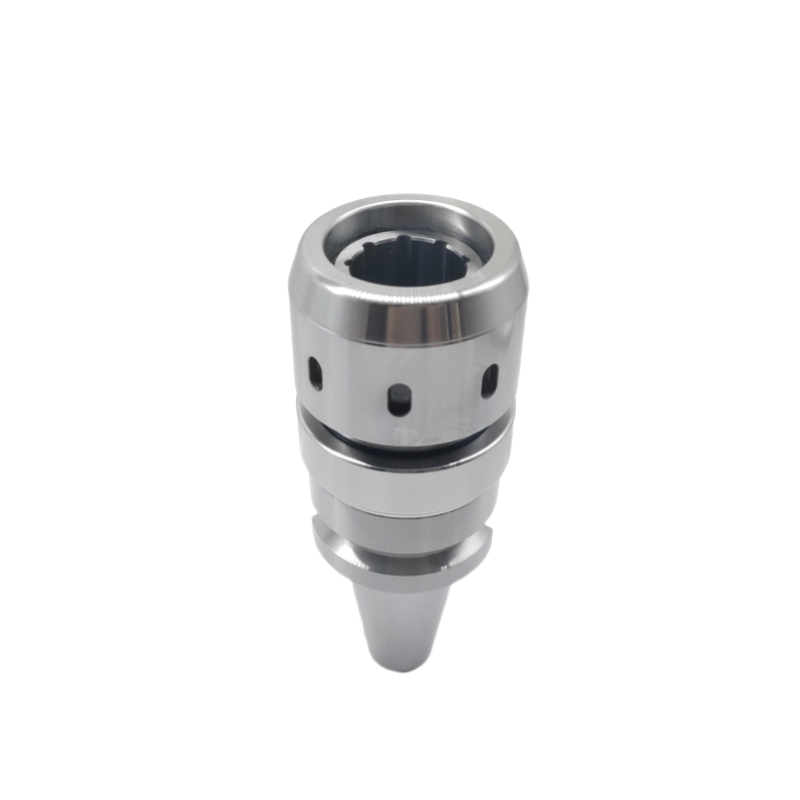

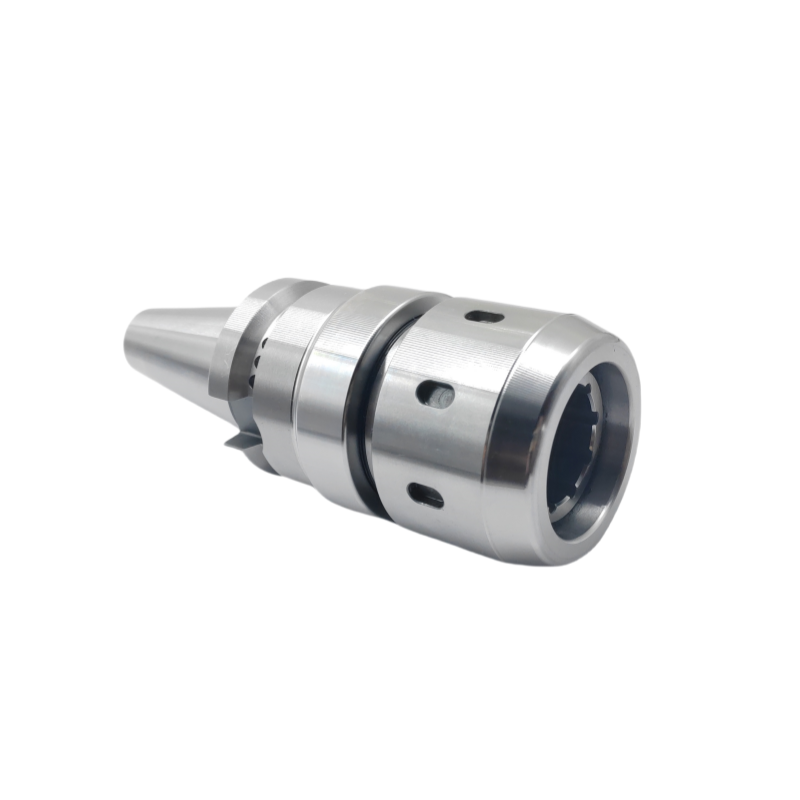

milling chuck 副图 (3).pngmilling chuck 副图 (4).png

Product brief

  1.  Inner hole of the shank divide into 6 troughs topre vent the insert remove,increase the grasp force
  2.  Ball bearing cage is made of special material,improve the endurance,enhance the grasp force
  3.  Grasp force strong,centering accuracy high,suit to heavy cutting
  4.  Material:20CrMnTi
  5.  Hardness:58-60HRC,Carburizing depth:>0.8mm
  6.  The chuck has made-196℃ super long cryogenic treatment and thermal aging processing
  7.  Type for BT/SK/CAT/HSK/NT/VDI/MT shank,
  8.  Taper tolerance:≤AT3
  9.  100%balanced to G6.3/12000rpm

Product advantages

Waterproof,Heavy cutting,Large clamping force

Product parameters

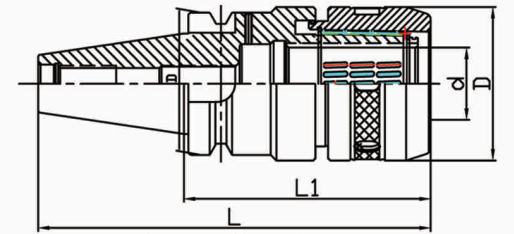

Milling chuck supplier

Model L L1 D d1 d2 N.W.
(kg)
BT30×MLC20-70 118.4 70 46 20 55 1.8
BT30×MLC20-90 138.4 90 2
BT40×MLC20-100 165.4 100 63 20 55 2.5
BT40×MLC20-135 200.4 135 2.8
BT40×MLC32-100 165.4 100 32 73 2.6
BT40×MLC32-105 170.4 105 2.8
BT40×MLC32-135 200.4 135 3
BT50×MLC20-105 206.8 105 100 20 55 4.5
BT50×MLC32-105 206.8 105 32 73 5
BT50×MLC32-110 211.8 110 5.2
BT50×MLC32-135 236.8 135 5.9
BT50×MLC32-165 266.8 165 6.6
BT50×MLC32-200 301.8 200 7.3
BT50×MLC42-110 211.8 110 42 88 6
BT50×MLC42-135 236.8 135 42 88 6.5
BT50×MLC42-165 266.8 165 7.4

milling chuck 主图.png
