Introduction

Product Description

Features

1. Rotating point is made of high quality alloy steel,heated to HRC 58±2

2. Concentricity error Max. 0.005

3. Dust-proof seal is available on the front end,to prevent the entry of cutting fluid and dust into bearing,which has extend the service life of center point

4. Highly suitable for the use on copying lathes for work-pieces with small diameter

Product parameters table

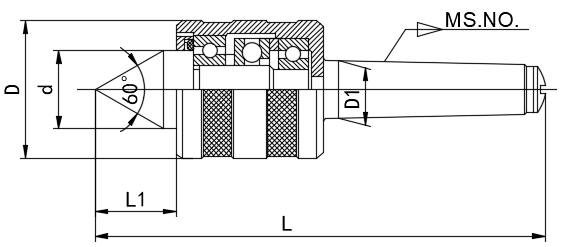

MEDIUM-DUTY LIVE CENTER details

Model	L	D	L1	d	D1	Radial load	Extreme speed	Accuracy
Model	mm	mm	mm	mm	mm	kg	rpm	mm
MT2/D412	145	45	26	25	17.78	1500	5000	0.01
MT3/D413	170	52	30	28	23.825	2000	4200	0.01
MT4/D414	205.7	60	34.7	32	31.267	3200	3200	0.01
MT5/D415	254	77	45	45	44.399	6300	2400	0.015
