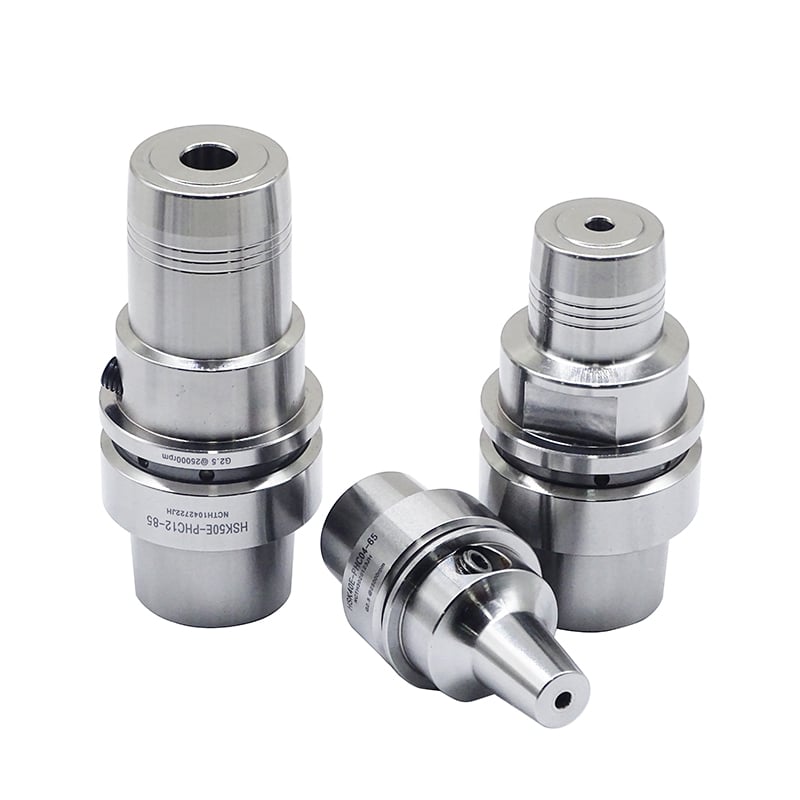

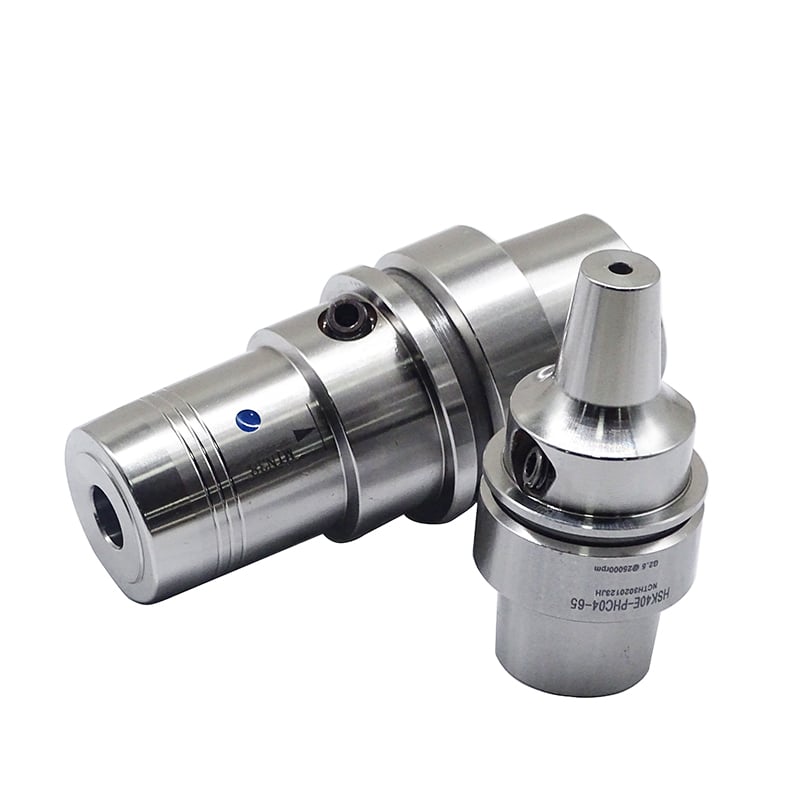

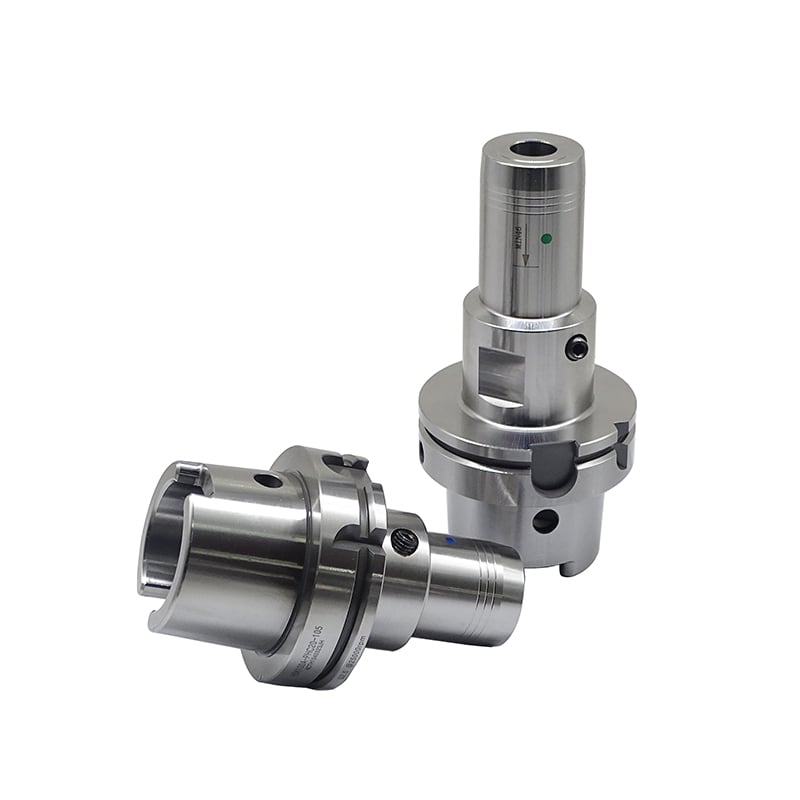

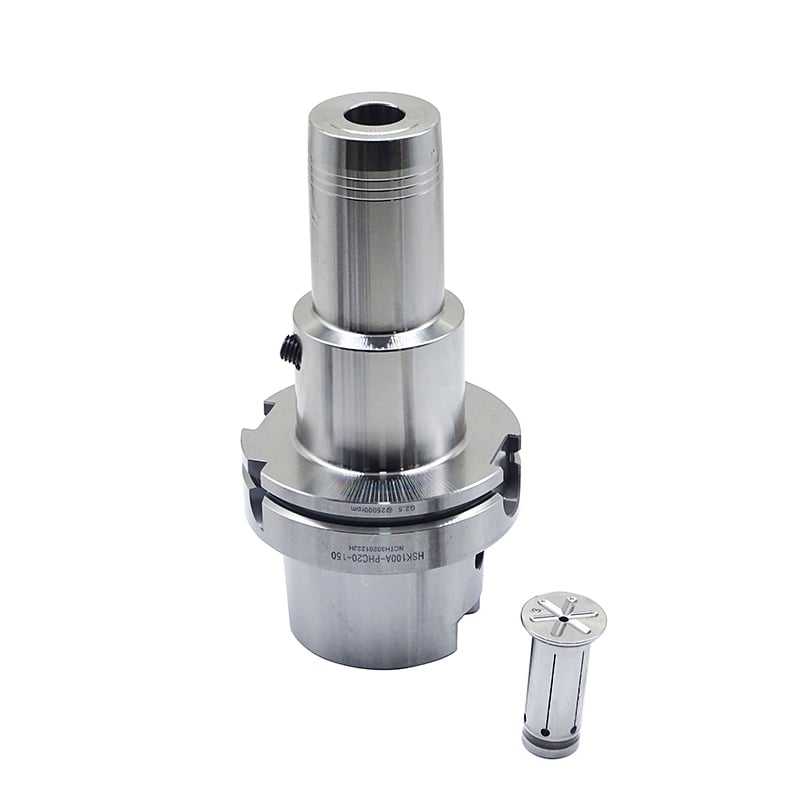

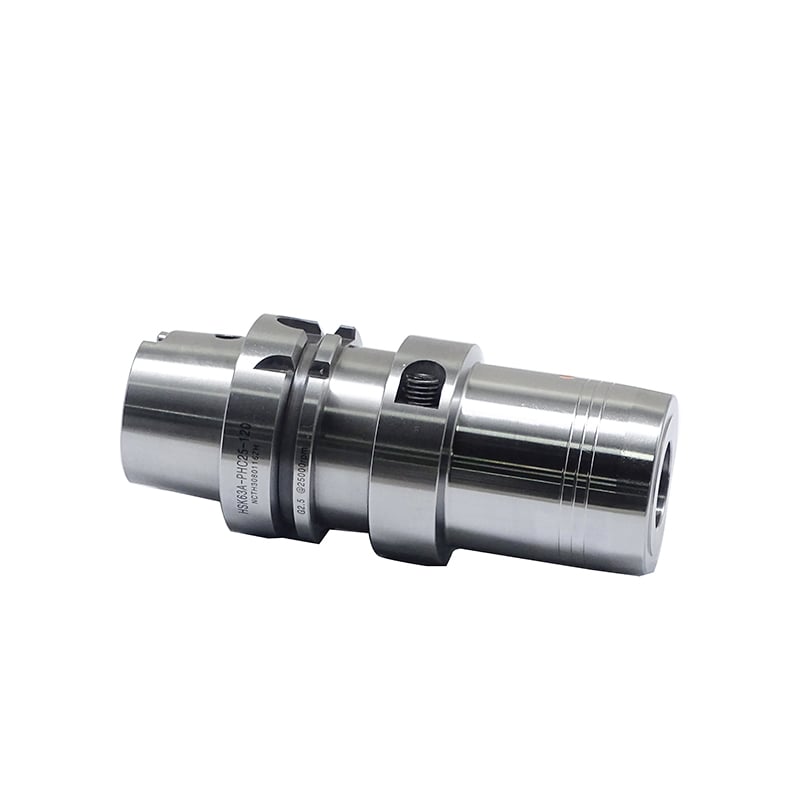

●For heavy machining
●Easy handling
●Extreme high camping force
● Rigid design
●"Dual clamping points system"for stable and high precision clamping
●Runout tolerance within 3 micron at 4xD diameters position
●Minimum tool runout ensures good surfaces and extend tool life
●Easy handling and tool changewith a force 6/12NM
Product brief
Product Description
Features

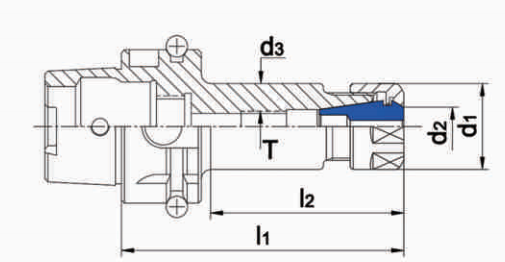

Product parameters
| Model | φd | φD1 | φD2 | L | L1 | Insection | Insection | N.W |
| Length | Length | (kg) | ||||||
| C1 | C | |||||||
| HSK40E-PHC06-70 | 6 | 28 | 34 | 70 | 33 | 28 | 37 | 0.46 |
| HSK40E-PHC08-70 | 8 | 30 | 34 | 70 | 34 | 28 | 37 | 0.48 |
| HSK40E-PHC10-75 | 10 | 32 | 34 | 75 | 39 | 33 | 44 | 0.51 |
| HSK40E-PHC12-80 | 12 | 34 | 34 | 80 | 一 | 36 | 50 | 0.53 |
| HSK50E-PHC06-70 | 6 | 30 | 42 | 70 | 25.5 | 28 | 37 | 0.7 |
| HSK50E-PHC08-70 | 8 | 32 | 42 | 70 | 26 | 28 | 37 | 0.71 |
| HSK50E-PHC10-80 | 10 | 34 | 42 | 80 | 32.6 | 33 | 44 | 0.72 |
| HSK50E-PHC12-85 | 12 | 36 | 42 | 85 | 40 | 36 | 50 | 0.85 |
| HSK50E-PHC16-90 | 16 | 40 | 42 | 90 | 43 | 42 | 52 | 0.91 |
| HSK50E-PHC20-90 | 20 | 42 | 42 | 90 | 一 | 39 | 52 | 0.91 |
| HSK50E-PHC20-120 | 20 | 42 | 42 | 120 | 一 | 39 | 52 | 1.05 |
| HSK50A-PHC05-65 | 5 | 28 | 42 | 70 | 28 | 28 | 34 | 一 |
| HSK50A-PHC06-70 | 6 | 30 | 42 | 70 | 28 | 28 | 34 | 一 |
| HSK50A-PHC08-70 | 8 | 32 | 42 | 70 | 28 | 28 | 34 | — |
| HSK50A-PHC10-80 | 10 | 34 | 42 | 80 | 35 | 33 | 44 | 0.77 |
| HSK50A-PHC12-85 | 12 | 36 | 42 | 85 | 42 | 35 | 50 | 0.93 |
| HSK50A-PHC16-90 | 16 | 40 | 42 | 90 | 45 | 37 | 51 | 0.98 |
| HSK50A-PHC18-90 | 18 | 42 | 42 | 90 | 一 | 38 | 51 | 一 |
| HSK50A-PHC20-90 | 20 | 42 | 42 | 90 | 一 | 40 | 51 | 1.05 |

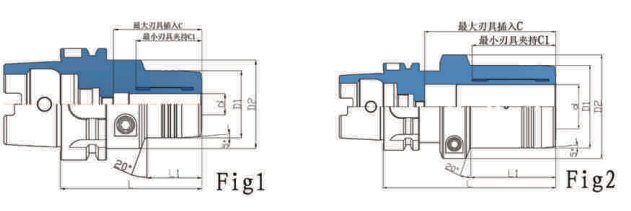

| Type | Fig. | φd | φD1 | φD2 | L | L1 | Insection | Insection | N.W |
| Length | Length | (kg) | |||||||
| C1 | C | ||||||||
| HSK63A-PHC03-65 | 1 | 3 | 25 | 46 | 65 | 19 | 18 | — | 0.91 |
| HSK63A-PHC3.175-65 | 1 | 3.175 | 25 | 46 | 65 | 19 | 18 | — | 0.91 |
| HSK63A-PHC06-80 | 1 | 6 | 32 | 48 | 80 | 32 | 29 | 46 | 1.08 |
| HSK63A-PHC08-80 | 1 | 8 | 34 | 50 | 80 | 32 | 30 | 46 | 1.13 |
| HSK63A-PHC10-80 | 1 | 10 | 36 | 52.5 | 80 | 32 | 31 | 50 | 1.17 |
| HSK63A-PHC12-80 | 1 | 12 | 38 | 52.5 | 80 | 32 | 32 | 50 | 1.2 |
| HSK63A-PHC16-90 | 1 | 16 | 42 | 52.5 | 90 | 41 | 40 | 60 | 1.3 |
| HSK63A-PHC20-90 | 1 | 20 | 46 | 52.5 | 90 | 41 | 40 | 60 | 1.35 |
| HSK63A-PHC25-120 | 2 | 25 | 53 | 63 | 120 | 55.5 | 49 | 85 | 1.98 |
| HSK63A-PHC32-125 | 2 | 32 | 60 | 75 | 125 | 60.5 | 61 | 95 | 2.29 |
| HSK100A-PHC06-85 | 1 | 6 | 32 | 50 | 85 | 30 | 29 | 45 | 2.46 |
| HSK100A-PHC06-150 | 1 | 8 | 32 | 50 | 150 | 30 | 29 | 45 | 2.82 |
| HSK100A-PHC08-85 | 1 | 8 | 34 | 50 | 85 | 30 | 30 | 45 | 2.48 |
| HSK100A-PHC08-150 | 1 | 8 | 34 | 50 | 150 | 30 | 30 | 45 | 2.95 |
| HSK100A-PHC10-90 | 1 | 10 | 36 | 52 | 90 | 34 | 36 | 50 | 2.6 |
| HSK100A-PHC10-150 | 1 | 10 | 36 | 52 | 150 | 34 | 36 | 50 | 3.25 |
| HSK100A-PHC12-95 | 1 | 12 | 38 | 52 | 95 | 38 | 38 | 50 | 2.64 |
| HSK100A-PHC12-150 | 1 | 12 | 38 | 52 | 150 | 38 | 38 | 50 | 3.57 |
| HSK100A-PHC16-100 | 1 | 16 | 42 | 58 | 100 | 40 | 43 | 54 | 2.86 |
| HSK100A-PHC16-150 | 1 | 16 | 42 | 58 | 150 | 40 | 43 | 54 | 3.7 |
| HSK100A-PHC18-105 | 1 | 18 | 42 | 58 | 105 | 30 | 44 | 50 | 3 |
| HSK100A-PHC20-105 | 1 | 20 | 46 | 60 | 105 | 45 | 40 | 53 | 3.01 |
| HSK100A-PHC20-150 | 1 | 20 | 46 | 60 | 150 | 45 | 40 | 53 | 3.73 |
| HSK100A-PHC25-110 | 1 | 25 | 53 | 63 | 110 | 55.5 | 49 | 72 | 3.18 |
| HSK100A-PHC32-110 | 1 | 32 | 62 | 75 | 110 | 55.5 | 54 | 72 | 3.59 |
