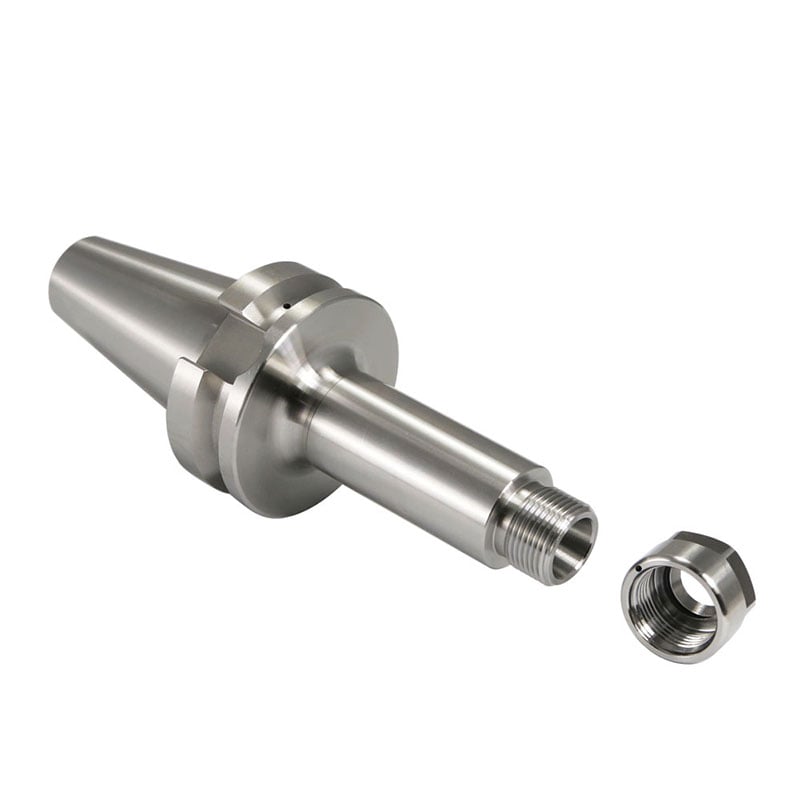

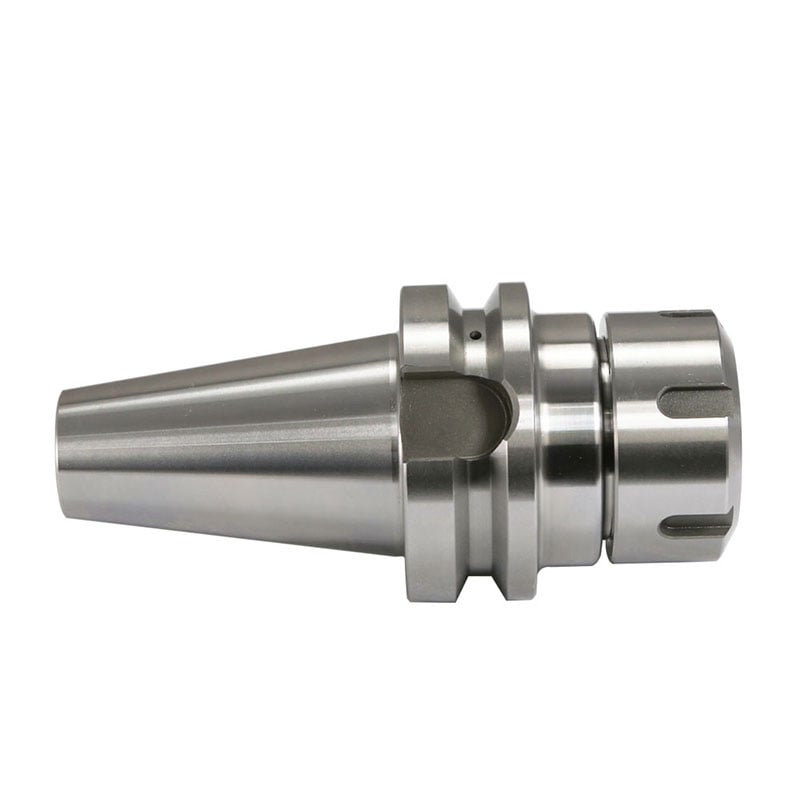

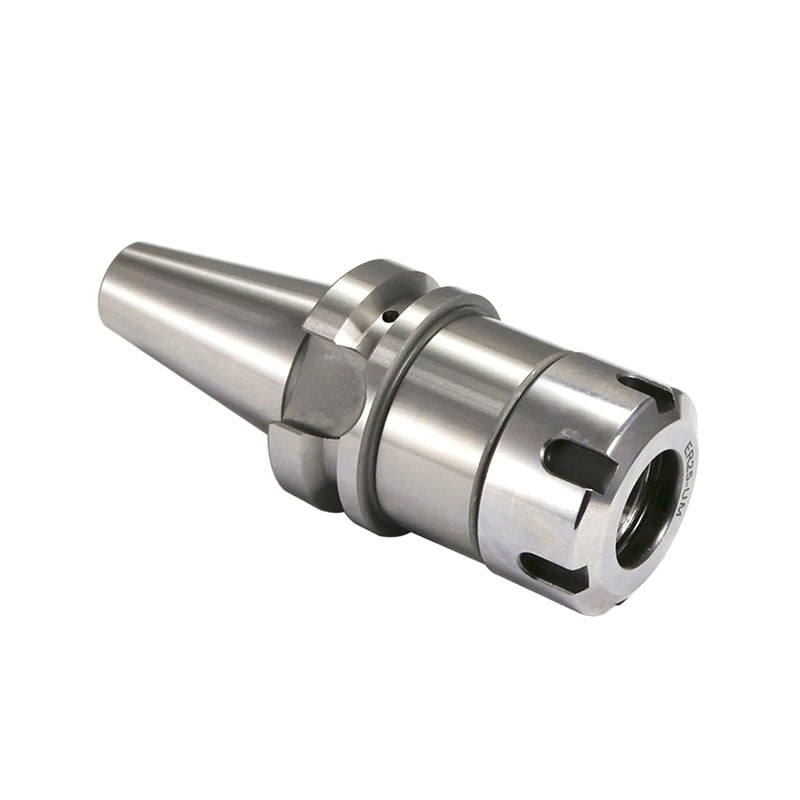

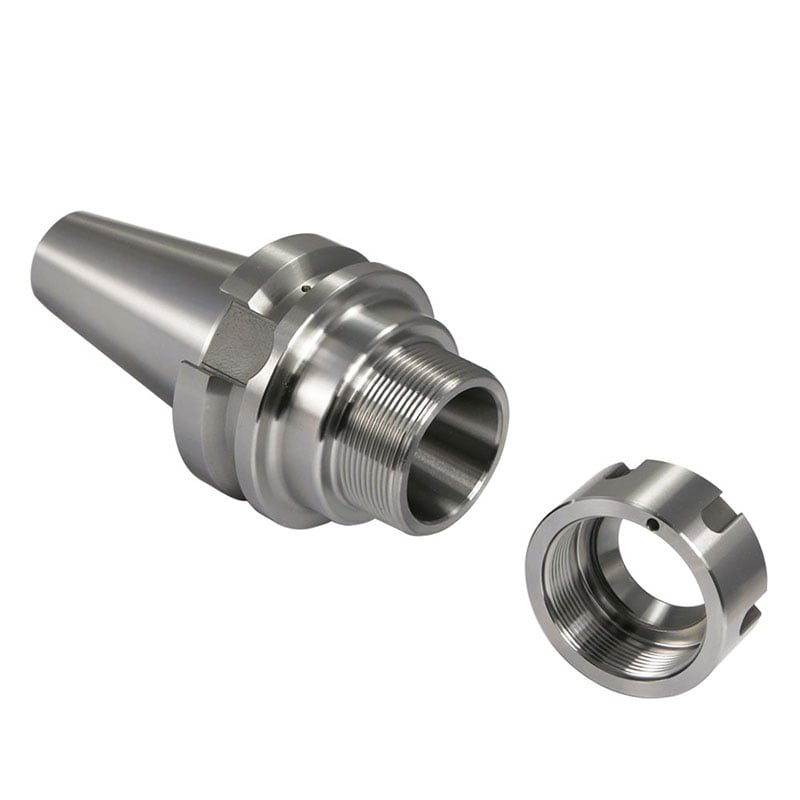

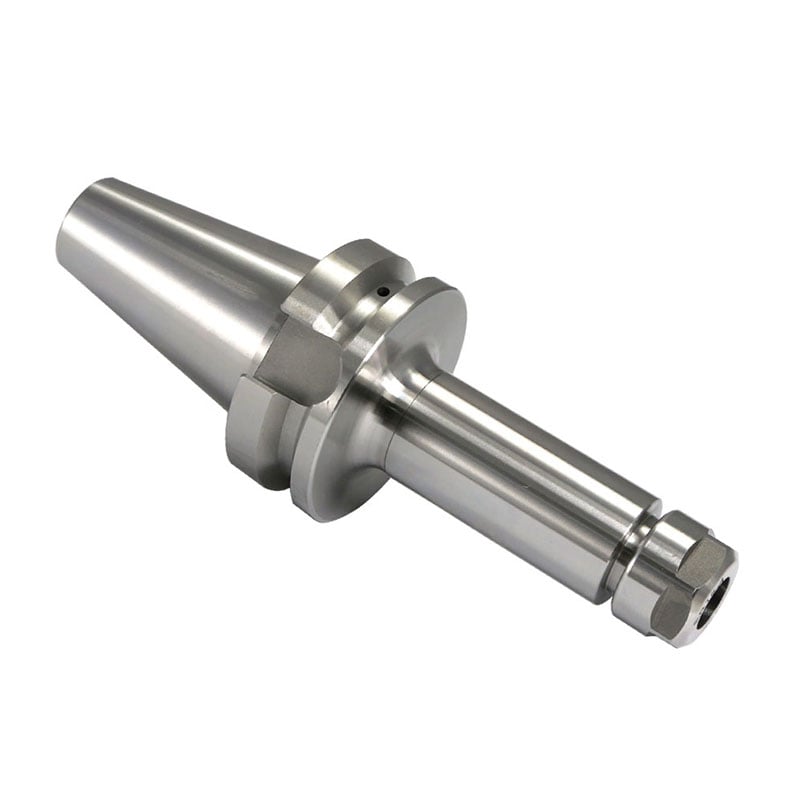

BT-ER tool holder

The clamping inner hole is precision-ground using a high-speed inner aperture grinder and inspected with a pneumatic measurement instrument, ensuring a big end contact area rate above 90%. Made of 20CrMnTi, it has a hardness of 56-60 HRC and a carburizing depth >0.8mm. Compatible with BT/SK/CAT/HSK/NT/VDI/MT shanks, taper tolerance ≤AT3. Fully balanced to G6.3/12000rpm, G2.5/20000rpm, 25000rpm, and 30000rpm. Undergoes 196℃ cryogenic treatment to transform residual austenite into martensite, followed by thermal stress relief to eliminate grinding residual stress.

Introduction

Product brief

Surface of the clamping inner hole is grinding by high speed inner aperture grinder,and inspect by standard pneumatic measurement instrument;the big end contact area rate is above90%
Material:20CrMnTi
Hardness:56-60HRC, Carburizing depth:>0.8mm
Type for BT/SK/CAT/HSK/NT/VDI/MT shank,taper tolerance:≤AT3
100%balanced to G6.3/12000rpm,G2.5/20000rpm,25000rpm,30000rpm
196℃ long cryogenic,nearly all of the residual austenite into martensite;
Long stereotyped thermal limitation re-moval of grinding residual stress.

Product parameters

Coolant form: Form A、Form AD、Form AD+B is optional.

Model	L1	L	D	d1	d2	T	N.W.
Model	L1	L	D	d1	d2	T	kg
BT30-ER16-70	70	118.4	31.75	16	28	M11×1.0P	0.55
BT30-ER16-100	100	148.4					0.8
BT30-ER16-150	150	198.4					1
BT30-ER20-70	70	118.4		20	34	M14×1.0P	0.75
BT30-ER20-100	100	148.4					0.9
BT30-ER20-150	150	198.4					1.2
BT30-ER25-70	70	118.4		25	42	M18×1.0P	0.7
BT30-ER25-100	100	148.4					1.45
BT30-ER25-150	150	198.4					1.6
BT30-ER32-70	70	118.4		32	50	M22×1.5P	0.85
BT30-ER32-100	100	148.4		32	50	M22×1.5P	1.5
BT30-ER40-80	80	128.4		40	63	M28×2.0P	1.1
BT40-ER16-70	70	135.4	44.45	16	28	M11×1.0P	1.36
BT40-ER16-100	100	165.4					1.54
BT40-ER16-120	120	185.4					1.6
BT40-ER20-70	70	135.4		20	34	M14×1.0P	1.7
BT40-ER20-100	100	165.4					1.8
BT40-ER20-150	150	215.4					2.1
BT40-ER25-70	70	135.4		25	42	M18×1.0P	1.9
BT40-ER25-100	100	165.4					2.25
BT40-ER25-150	150	215.4					2.75
BT40-ER32-70	70	135.4		32	50	M22×1.5P	2.5
BT40-ER32-100	100	165.4					2.8
BT40-ER32-120	120	185.4					3
BT40-ER32-150	150	215.4					3.05
BT40-ER32-200	200	265.4					3.3
BT40-ER40-80	80	145.4		40	63	M28×2.0P	2.5
BT40-ER40-100	100	165.4		40	63	M28×2.0P	3.1
BT50×ER16-70	70	171.8	69.85	16	28	M11×1.0P	4.05
BT50×ER16-100	100	201.8					4.2
BT50×ER16-150	150	251.8					4.45
BT50×ER16-200	200	301.8					4.8
BT50×ER20-70	70	171.8		20	34	M14×1.0P	4.2
BT50×ER20-100	100	201.8					4.25
BT50×ER20-150	150	251.8					4.7
BT50×ER20-200	200	301.8					4.9
BT50×ER25-70	70	171.8		25	42	M18×1.0P	4.2
BT50×ER25-100	100	201.8					4.4
BT50×ER25-120	120	221.8					4.6
BT50×ER25-150	150	251.8					4.8
BT50×ER25-200	200	301.8					5.2
BT50-ER32-70	70	171.8		32	50	M22×1.5P	4.6
BT50×ER32-100	100	201.8					4.8
BT50×ER32-120	120	221.8					4.9
BT50×ER32-150	150	251.8					5.3
BT50×ER32-200	200	301.8					5.5
BT50×ER40-80	80	181.8		40	63	M28×1.5P	4.3
BT50×ER40-100	100	201.8					4.4
BT50×ER40-120	120	221.8					5.2
BT50×ER40-150	150	251.8					5.8
BT50×ER40-200	200	301.8					6.7
