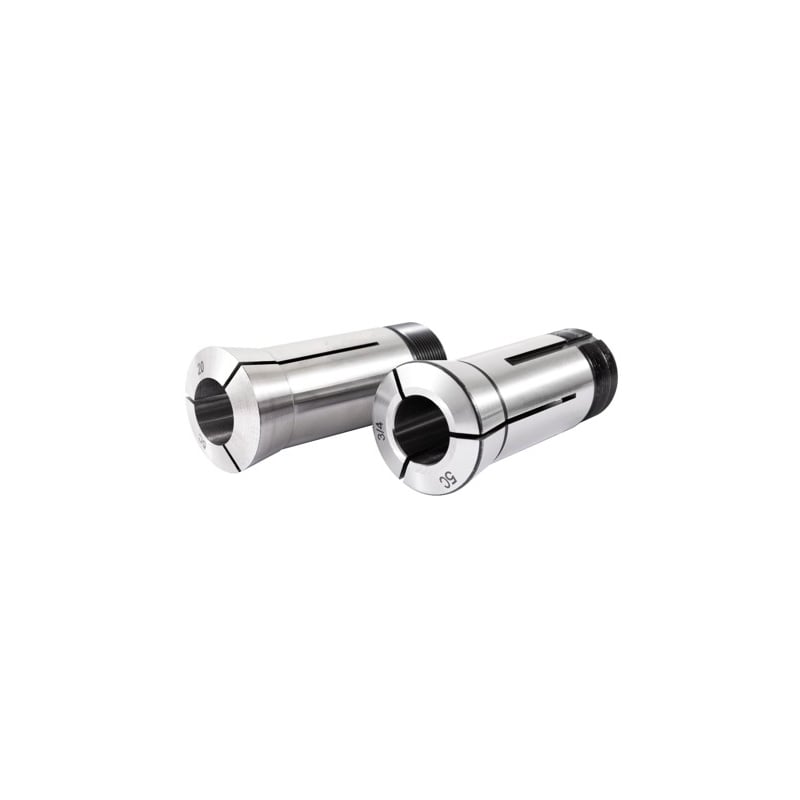

5C collet

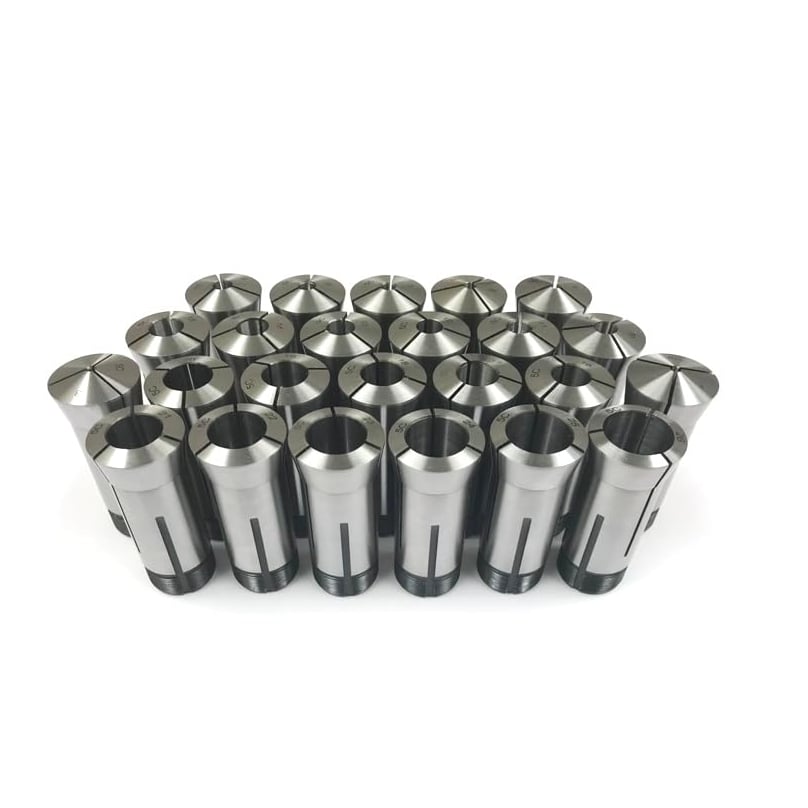

5C Collets are one of the most universal collets in a machine shop. Part of the appeal of the 5C collet system is its wide range of sizes, commercially available from 1/64” to 1-1/8” or 3mm to 26mm in a variety of round bores. The 5C system lends itself to most jobs.5C collet can provide exceptional concentricity to speed up setup than three jaw chucks without any issues.

Introduction

Product brief

Product Description

Key Features and Benefits

Versatility: 5C collets are available in various sizes to accommodate multiple workpiece diameters, making them suitable for various machining applications.
Precision: The tapered design of 5C collets ensures concentricity and repeatability, allowing for accurate machining with minimal runout.
Quick Changeover: With their simple yet effective design, 5C collets enable rapid changeover between different workpieces, minimizing downtime and increasing productivity.
Compatibility: 5C collets are compatible with various collet chucks, collet closers, and other work-holding accessories, providing flexibility and adaptability in machining setups.
Extraordinary steel for lengthy wear lifetime
Precision grade
Tools accessible
Hardened and ground
Inch and metric dimension
Accessible with workpiece stop and modifiable collet
Useful with most 5C and R8 equipment.

Product parameters

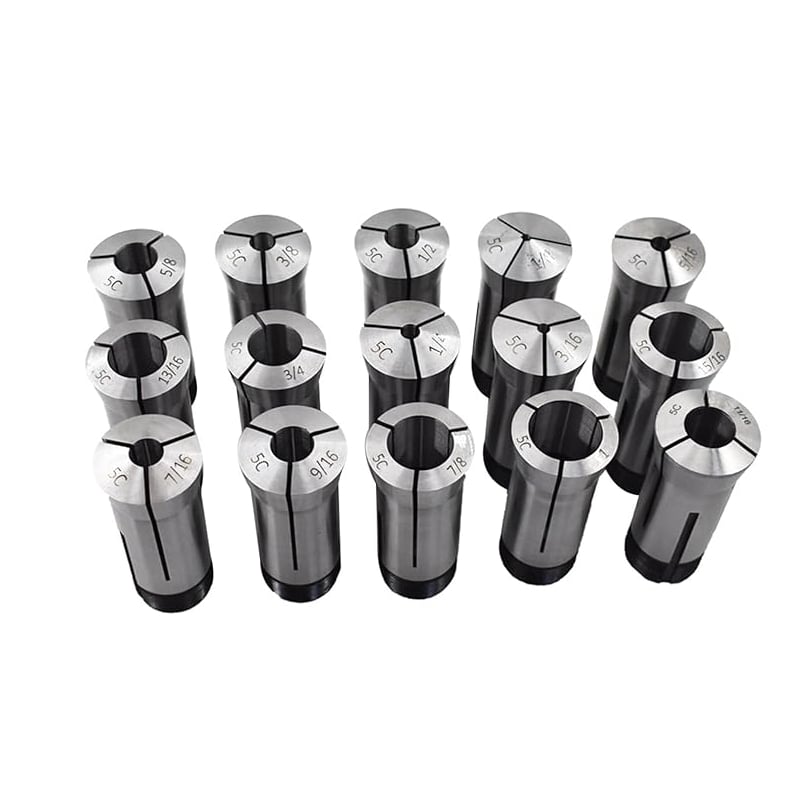

METRIC SIZE			INCH SIZE
3	11	19	1/8"	3/8"	5/8"	7/8"
3.5	11.5	19.5	9/64"	25/64"	41/64"	57/64"
4	12	20	5/32"	13/32"	21/32"	29/32"
4.5	12.5	20.5	11/64"	27/64"	43/64"	59/64"
5	13	21	3/16"	7/16"	11/16"	15/16"
5.5	13.5	21.5	13/64"	29/64"	45/64"	61/64"
6	14	22	7/32"	15/32"	23/32"	21/32"
6.5	14.5	22.5	15/64"	31/64"	47/64"	63/64"
7	15	23	1/4"	1/2"	3/4"	1"
7.5	15.5	23.5	17/64"	33/64"	49/64"	1-1/64"
8	16	24	9/32"	17/32"	25/32"	1-1/32"
8.5	16.5	24.5	19/64"	35/64"	51/64"	1-3/64"
9	17	25	5/16"	9/16"	13/16"	1-1/16"
9.5	17.5	25.5	21/64"	37/64"	53/64"	1-5/64"
10	18	26	11/32"	19/32"	27/32"	1-3/32"
10.5	18.5		23/64"	39/64"	55/64"	1-7/64"
						1-1/8"
